GCP Concrete Processor

GCP Concrete Processor

Black Genesis Concrete Processor with open jaws facing right.
Summary

GCP Concrete Processor

The Genesis Concrete Processor provides crushing force coupled with a large jaw opening for unmatched performance in demolition and concrete recycling applications.



  • One-piece bolt-on tooth bed is quick and easy to replace
  • One-piece lower wear pad protects the parent material
  • Bolt-on rebar cutting blades and weld-in blade pockets are easy to replace, reducing maintenance
  • Power is derived from a large-bore cylinder, eliminating the need for an intensifier

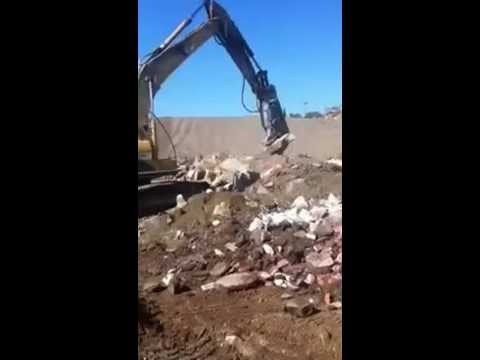

Watch the Genesis Concrete Processor easily break concrete.
Watch the Genesis Concrete Processor easily break concrete.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Jaw Width (ins.)Reach** (ft. ins.)Min. Excavator Weight Stick Mount (lbs.)
GCP 4104,6503429206' 9"45,000
GCP 410R6,6503429207' 9"55,000
GCP 61010,3504940308' 8"75,000
GCP 610R11,5504940309' 8"95,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
Genesis Concrete Processors are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Concrete Processor provides crushing force coupled with a large jaw opening for unmatched performance in demolition and concrete recycling applications.


This concrete pulverizer derives its power from a protected large-bore cylinder, eliminating the need for an intensifier, and features a proprietary regeneration valve that improves cycle time by up to 33%.



The one-piece bolt-on tooth bed and bottom wear pad not only protect parent material but are quick and easy to replace, minimizing build-up and hard-surfacing. This demolition attachment also has bolt-on rebar cutting blades and weld-in blade pockets that are easy to replace, further reducing maintenance.



For additional product, application or service information, call us at 1-888-SHEAR-IT.

Spec Sheets:
Brochures:
SAE
Metric
