GDR Demolition Recycler

GDR Demolition Recycler

Yellow Genesis Demolition Recycler with open jaws facing left.
Yellow Genesis Demolition Recycler with open jaws facing right.
Summary

GDR Demolition Recycler

The Genesis Demolition Recycler is an all-purpose concrete processor and cutting attachment for high-reach and standard projects as well as road and bridge demolition.



  • Large-bore cylinder and regeneration valve deliver quick cycle times and impactful crushing force
  • Tight fit between the cylinder, body and upper jaw minimizes the risk of debris damaging internal components
  • Bolt-on teeth and blades reduce maintenance time
  • Heavy-duty pivot design provides structural strength and long-term durability

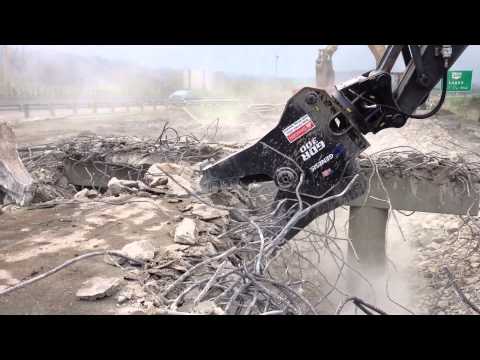

Watch the Genesis GDR up close while demolishing a bridge.
Watch the Genesis GDR up close while demolishing a bridge.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** (ft. ins.)Min. Excavator Weight
Stick Mount (lbs.)
GDR 1503,45026256' 4"28,000
GDR 2005,50035327' 7"45,000
GDR 3007,90043398' 9"70,000
GDR 40011,00048419' 10"100,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
All Genesis Demolition Recyclers are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Demolition Recycler is an all-purpose concrete processor and cutting attachment for high-reach and standard projects as well as road and bridge demolition.



A powerful demolition attachment, the GDR is available with concrete cracker, pulverizer and shear jaw options for the 150, 200 and 300 models, and concrete cracker and pulverizer jaw options for the GDR 400. Indexable blades provide two useable cutting edges for longer life, while bolt-on teeth and blades reduce maintenance time.



This GDR attachment for demolition minimizes dust, noise and flying debris while maximizing productivity in projects that include concrete recycling, C & D processing, structural steel, and rebar, wire or aluminum.



For additional product, application or service information, call us at 1-888-SHEAR-IT.

SAE
Metric
