GSS Subsea Shear

GSS Subsea Shear

Yellow Genesis Subsea Shear with open jaw facing right.
Summary

GSS Subsea Shear

The Genesis Subsea Shear is pressure-tested to operate at depths down to 10,000 feet for platform decommissioning, pipeline and piling cutting, and underwater steel cutting.



  • Cable hung - operated by subsea power pack or from surface power
  • Anti-corrosion primer and paint for supreme protection in harsh marine environments
  • Heavy-duty pivot design provides structural strength and long-term durability

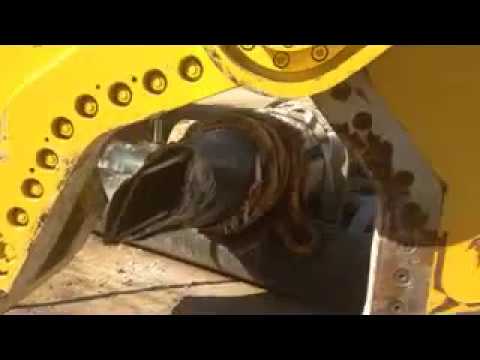

Watch the Genesis Subsea Shear cut concrete coated pipe in China.
Watch the Genesis Subsea Shear cut concrete coated pipe in China.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)
GSS 66512,3003232
GSS 77514,7003537
GSS 255546,0005456

Genesis GSS shears are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Subsea Shear is pressure-tested to operate at depths down to 10,000 feet for platform decommissioning, pipeline and piling cutting, and underwater steel cutting.



Available with 32-, 35- or 54-inch jaw openings, the GSS's exclusive, easy-to-shim AutoGuide system helps maintain blade tolerances by off-setting jaw deflection. This underwater cutting shear also features additional bearings and grease points at the cylinder ends to simplify maintenance and disassembly.



For additional corrosion protection and functionality, this underwater pipe cutting shear features:

  • Anti-corrosion coated fasteners and critical surfaces, primer and paint
  • Zinc anodes for galvanic corrosion protection
  • Drain holes in the side and bottom plates for easy water drainage

For additional product, application or service information, call us at 1-888-SHEAR-IT.
