GVP 07 with Grapple Jaw

GVP 07 with Grapple Jaw

Black Genesis Versi Pro 07 with Grapple Jaw open facing left.
Summary

GVP 07 with Grapple Jaw

The Genesis Versi Pro 07 with Grapple Jaw is a versatile skid steer and mini excavator scrap grapple and demolition grapple.



  • Boxed tine construction creates a very high strength and light weight grapple – each tine will withstand the full breakout force of the carrier
  • Recessed welds are protected from wear, increasing grapple life
  • Replaceable tine tips are abrasion-resistant
  • Innovative bracket system accommodates a skid steer quick plate or a mini excavator lug plate
Watch the Genesis Versi Pro 07 with cracker, shear and grapple jaws work in a variety of applications.
Watch the Genesis Versi Pro 07 with cracker, shear and grapple jaws work in a variety of applications.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
JawsWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** with Jaws Installed (ft. ins.)Min. Excavator Weight Boom Mount (lbs.)Min. Excavator Weight Stick Mount (lbs.)Min. Skid Steer Weight (lbs.)
Shear1,37511.511.55' 6"12,00016,0007,000
Cracker1,38514.5135' 8"12,00016,0007,000
Grapple1,4203215.55' 11"12,00016,0007,000
Wire Cutter1,24510.511.55' 9"12,00016,0007,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
The GVP 07 body and jaws are available in black only.
The stability of each lift class varies between OEM skid steer and mini excavator models. Please consult with your Genesis salesperson for recommended carrier models.
Control packages are available for carriers less equipped.
The Genesis Versi Pro 07 is covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Versi Pro 07 with Grapple Jaw is a versatile skid steer and mini excavator scrap grapple and demolition grapple.



Featuring boxed tine construction, recessed welds and abrasion-resistant replaceable tine tips, this high-strength but lighter-weight skid steer grapple is ideal for interior demolition, scrap processing, 55-gallon barrel handling and on-site material processing.

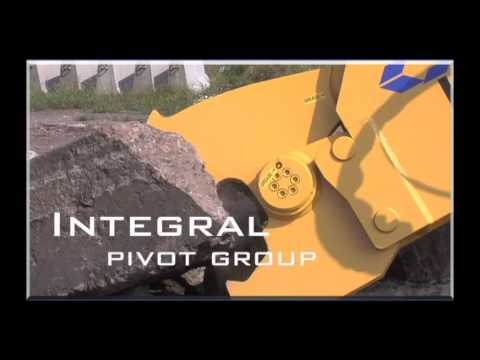

The GVP 07 is a multi-jaw processor also available with shear, cracker or wire cutter jaws that safely change-out in 10 minutes or less. Each jaw’s pivot group stays intact, allowing the use of a press-fit pin design that makes this demolition grapple stronger and more durable, while the electric over hydraulic system allows for jaw open or close and rotation with one hydraulic circuit.


For additional product, application or service information, call us at 1-888-SHEAR-IT.
