GVP 07 with Shear Jaw

GVP 07 with Shear Jaw

Black Genesis Versi Pro 07 with shear jaw open facing left.
Summary

GVP 07 with Shear Jaw

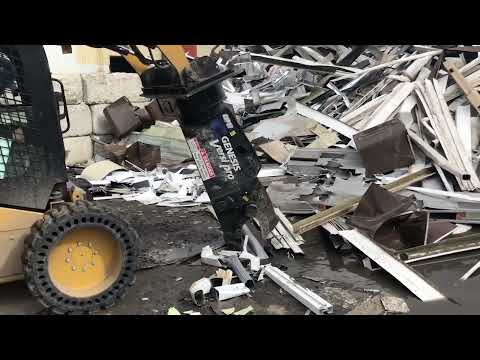

The GVP 07 with Shear Jaw is designed to fit onto skid steers and mini excavators, making it ideal for interior demolition, scrap processing and on-site material processing.



  • Patented pivot geometry creates peak power for piercing and cutting
  • Four-way indexable guide blades and primary blades provide four useable cutting edges
  • Electric over hydraulic system allows simultaneous jaw open or close and rotation with one hydraulic circuit
  • Innovative bracket system accommodates a skid steer quick plate or a mini excavator lug plate
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
JawsWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** with Jaws Installed (ft. ins.)Min. Excavator Weight Boom Mount (lbs.)Min. Excavator Weight Stick Mount (lbs.)Min. Skid Steer Weight (lbs.)
Shear1,37511.511.55' 6"12,00016,0007,000
Cracker1,38514.5135' 8"12,00016,0007,000
Grapple1,4203215.55' 11"12,00016,0007,000
Wire Cutter1,24510.511.55' 9"12,00016,0007,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
The GVP 07 body and jaws are available in black only.
The stability of each lift class varies between OEM skid steer and mini excavator models. Please consult with your Genesis salesperson for recommended carrier models.
Control packages are available for carriers less equipped.
The Genesis Versi Pro 07 is covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The GVP 07 with Shear Jaw is designed to fit onto skid steers and mini excavators, making it ideal for interior demolition, scrap processing and on-site material processing.



This scrap shear and demolition shear features patented pivot geometry that creates peak power for piercing and cutting, a weld-on wear plate and piercing tip, and four-way indexable guide blades and primary blades that provide four useable cutting edges for longer life and reduced maintenance.



The GVP 07 is a multi-jaw processor also available with cracker, grapple or wire cutter jaws that safely change-out in 10 minutes or less. Each jaw’s pivot group stays intact, allowing the use of a press-fit pin design that makes this scrap shear and demolition attachment stronger and more durable, while the electric over hydraulic system allows for jaw open or close and rotation with one hydraulic circuit.


For additional product, application or service information, call us at 1-888-SHEAR-IT.
