LXP<sup>®</sup> with Concrete Cracker Jaw

LXP<sup>®</sup> with Concrete Cracker Jaw

Genesis LXP with Concrete Cracker Jaw attachment with open jaws facing left.
Genesis LXP with Concrete Cracker Jaw attachment with open jaws facing right.
Summary

LXP® with Concrete Cracker Jaw

  • Patented pivot geometry creates peak power when jaws are fully open, where it's most needed to crush large concrete
  • Teeth are easy to change and fully protect the parent material, eliminating the need for build-up and hard-surfacing
  • Cracker tips concentrate force for a greater ability to crush through heavy concrete
  • Jaw change-outs in 15 minutes with the coupler style connection system, hydraulically activated lock pin, jaws that stay intact and a stand with every jaw set - safe, easy and fast
  • Each jaw's pivot group stays intact, allowing the use of a press fit design for a stronger, more durable product

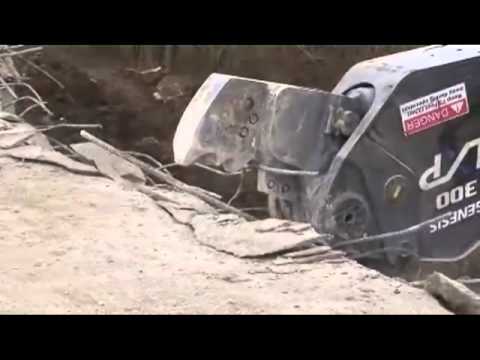

Watch the Genesis LXP with Concrete Cracker Jaws demolish a bridge.
Watch the Genesis LXP with Concrete Cracker Jaws demolish a bridge.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** (ft. ins.)Min. Excavator Weight Boom Mount (lbs.)Min. Excavator Weight Stick Mount (lbs.)
LXP 200 Shear5,37017198' 0"20,00045,000
LXP 200 CC5,65038288' 0"20,00045,000
LXP 200 CP5,67029248' 0"20,00045,000
LXP 300 Shear7,60022248' 6"45,00070,000
LXP 300 CC7,56043308' 6"45,00070,000
LXP 300 CP7,27035268' 6"45,00070,000
LXP 400 Shear11,06524279' 6"60,000100,000
LXP 400 CC11,1454733.59' 6"60,000100,000
LXP 400 CP11,25538309' 6"60,000100,000
LXP 500 Shear12,90527289' 11"70,000120,000
LXP 500 CC12,7155134.59' 11"70,000120,000
LXP 500 CP12,20543319' 11"70,000120,000
LXP 800 Shear17,500403511' 8"90,000150,000
LXP 800 CC17,600715011' 8"90,000150,000
LXP 800 CP17,720613911' 8"90,000150,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
Genesis Logix Processors are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

Genesis Attachments designed the Genesis LXP® with Concrete Cracker Jaw demolition attachment for concrete recycling, C&D processing, demolition and rebar removal. Featuring a patented pivot system that provides a power curve to match the application, the LXP's jaw tips concentrate force to more thoroughly crush heavy concrete.


The LXP with Concrete Cracker Jaw demolition pulverizer also features:

  • Teeth that are easy to change and fully protect the parent material, eliminating the need for build-up and hard-surfacing
  • A jaw set stand for safe, easy and fast jaw change-outs
  • A proprietary regeneration valve that improves cycle time by up to 33% compared to standard hydraulic systems

The LXP concrete processor is designed to fit 20,000 lb. to 150,000 lb. excavators. Its industry-leading quick-change jaw design provides powerful multiprocessor capabilities with a range of demolition attachments including pulverizer, concrete cracker and shear jaws that can be changed out in 15 minutes to meet any jobsite need.


For additional information, call us at 1-888-SHEAR-IT.
