GLS Linkage Shear

GLS Linkage Shear

Yellow Genesis Linkage Shear with open jaws facing right.
Yellow Genesis Linkage Shear with open jaws facing left.
Summary

GLS Linkage Shear

The Genesis Linkage Shear easily cuts and processes light to medium material such as structural and plate steel, rebar, pipe, non-ferrous metals, concrete and tires.



  • Patented bolt-on piercing tip is replaced in minutes without grinding or welding
  • Four-way indexable guide blades, razor blade and primary blades provide four useable cutting edges
  • Shrouded heavy-duty pivot design provides structural strength and long-term durability
  • The GLS stands upright for easy attachment changes and convenient storage and transport

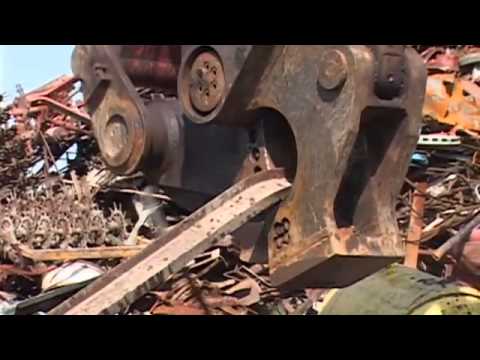

Watch the Genesis Linkage Shear efficiently process a scrap pile.
Watch the Genesis Linkage Shear efficiently process a scrap pile.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening** (ins.)Jaw Depth (ins.)Excavator Weight (lbs.)
GLS 504,100212140,000 - 60,000
GLS 704,696242460,000 - 80,000
GLS 905,313272780,000 - 110,000

*Weight includes mounting bracket and stiff arm.
**Jaw opening varies slightly depending on excavator mounting location.
Genesis linkage attachments are not compatible with quick couplers. Contact Genesis for more information.
All Genesis Linkage Shears are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Linkage Shear easily cuts and processes light to medium material such as structural and plate steel, rebar, pipe, non-ferrous metals, concrete and tires.



The GLS pins-on in place of an excavator bucket with no additional plumbing, making it easy to use for scrap processing, demolition, C & D processing and concrete recycling.



The Linkage Shear features:

  • A compact jaw that provides quick cycle time and efficient processing
  • Easily replaceable bolt-on cutting blades
  • An oversized pivot shaft and bearings that extend service life
  • Strong and abrasion-resistant custom-alloy steel



For additional product, application or service information, call us at 1-888-SHEAR-IT.

Spec Sheets:
SAE
Metric
