GRB Rail Breaker

GRB Rail Breaker

Yellow Genesis rail cutting shear facing left.
Yellow Genesis rail cutting shear facing right.
Summary

GRB Rail Breaker

The Genesis Rail Breaker is a rail cutting shear that features an innovative four-blade design to reduce jaw wear and maintenance.



  • For processing 136 lb. and smaller low chrome rail
  • Heavy-duty pivot group with flush caps for increased durability
  • Deep jaw design for rail cutting in the center of the blades

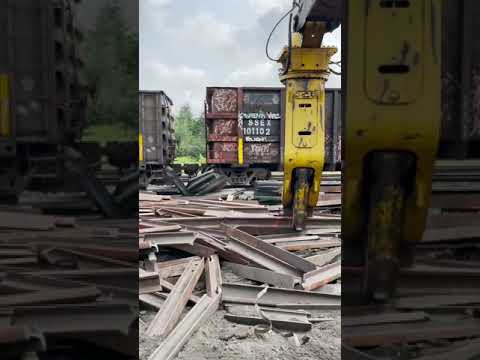

Watch the GRB rail cutting shear process rail.
Watch the GRB rail cutting shear process rail.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** (ft. ins.)Min. Excavator Weight Boom Mount (lbs.)Min. Excavator Weight Stick Mount (lbs.)
GRB 306,9009.7513.259' 2"40,00055,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
The GRB is covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Rail Breaker is a rail cutting shear that features an innovative four-blade design to reduce jaw wear and maintenance. Cutting blades on each side of this mobile rail cutter's upper and lower jaws minimize parent material wear, extending jaw life and reducing the need for build-up.



A deeper jaw design provides increased bearing life and reduces pivot stress by keeping the rail cutting area in the center of the blades, away from the throat, and the large-bore cylinder produces more power for improved cutting.



For additional product, application or service information, call us at 1-888-SHEAR-IT.
