GRX Razer X Multi-Jaw Demolition Tool

The award-winning GRX Razer X Multi-Jaw Demolition Tool enables excavator operators to change jaw sets in less than 2 minutes, without leaving the cab.



  • Hydraulic pin engagement and removal for fast and safer jaw change-outs
  • Heavy-duty pivot design is integral to the jaw set, providing a power curve to match the jaw’s primary application
  • Reverse-mounted cylinder protects the rod from debris
  • Short, flat-top head with bolt-on bracket shortens the center of gravity, making it easy to change mounting for different carriers

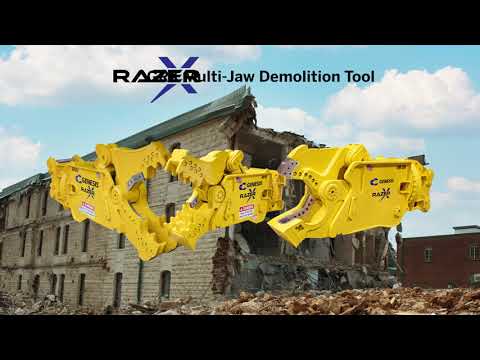

  • Available in cracker, shear and pulverizer jaw configurations
The GRX Multi-Jaw Demolition Tool eliminates the need for multiple machines with different attachments.
The GRX Multi-Jaw Demolition Tool eliminates the need for multiple machines with different attachments.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelJawWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** (ft. ins.)Min. Excavator Weight
Stick Mount (lbs.)
GRX 195Cracker5,50030308' 9"45,000
GRX 195Shear5,20018188' 9"45,000
GRX 195Pulverizer5,50029268' 9"45,000
GRX 295Cracker7,10038329' 4"66,000
GRX 295Shear6,90020209' 4"66,000
GRX 295Pulverizer7,30038309' 4"66,000
GRX 395Cracker10,750454210' 6"90,000
GRX 395Shear10,5002425.510' 6"90,000
GRX 395Pulverizer11,000453610' 6"90,000

* Weight includes mounting bracket to attach to excavator.
** Distance is measured from the attachment mounting pivot (boom or stick) forward.
All Genesis GRX Razer X tools are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The GRX Multi-Jaw Demolition Tool eliminates the need for multiple machines with different attachments. Simply change-out the shear, cracker or pulverizer jaws in less than two minutes and you’re back to work without leaving the cab.



This demolition attachment’s body contains hydraulically-actuated pins, controlled from the cab, that connect to the cylinder and jaw set. This enables the operator to change jaws without assistance, making change-outs faster and safer.



Cracker, shear and pulverizer jaws process a variety of materials, and each jaw set comes with its own stand specifically designed for correct positioning and efficient handling.



Additionally, this multi-jaw processor features bolt-on and reversible wear parts to simplify maintenance, and a flat-top head with bolt-on bracket makes it easy to change lugs for different carriers.



For additional product, application or service information, call us at 1-888-SHEAR-IT.
