GSD Severe-Duty Grapple

GSD Severe-Duty Grapple

Yellow Genesis Severe-Duty Grapple with open jaw facing right.
 Yellow Genesis Severe-Duty Grapple with open jaw facing left.
Summary

GSD Severe-Duty Grapple

The Genesis Severe-Duty Grapple is a scrap grapple and demolition grapple designed for maximum strength and durability.



  • Boxed tine construction creates a very high strength and lightweight grapple – each tine will withstand the full breakout force of an excavator
  • Recessed welds are protected from wear, increasing grapple life
  • Patent-pending pivot group features a large pivot shaft, and bearings provide long-term durability

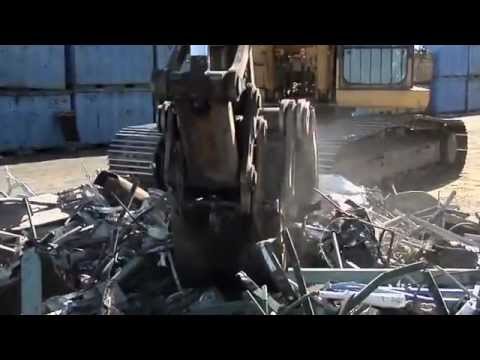

Watch as the Genesis Severe-Duty Grapple easily moves a scrap pile.
Watch as the Genesis Severe-Duty Grapple easily moves a scrap pile.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Capacity (yd3)Jaw Opening** (ins.)Jaw Closed (ins.)Moveable Jaw Width (ins.)Lower Jaw Width (ins.)Excavator Weight (lbs.)
GSD 105550.5 - 0.8647132210,000 - 20,000
GSD 302,1101.5 - 2.5848213524,000 - 30,000
GSD 402,6202 - 3929263830,000 - 40,000
GSD 503,3003 - 49910304435,000 - 65,000
GSD 704,4303.5 - 4.512112304465,000 - 85,000
GSD 905,9504.5 - 6.513112345085,000 - 120,000
GSD 1407,5006.5 - 7.5140153450120,000 - 170,000
GSD 1709,6007.5 - 10150164058170,000 - 220,000
GSD 25016,5008.5 - 12150164068220,000 - 280,000

*Weight includes mounting bracket and stiff arm.
**Jaw opening varies slightly depending on excavator mounting location.
Genesis Severe-Duty Grapples are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The Genesis Severe-Duty Grapple is a scrap grapple and demolition grapple designed for maximum strength and durability.



Featuring high-strength steel tines for maximum load capacity and weld-in, replaceable, abrasion-resistant Hardox steel tine tips, the GSD maximizes productivity while simplifying maintenance and is established as a versatile tool for a wide range of applications including rip-rap handling, road building and reconstruction, waste handling, C & D sorting and land clearing.



For additional product, application or service information, call us at 1-888-SHEAR-IT.

Spec Sheets:
SAE
Metric
