LXP<sup>®</sup> with Shear Jaw

LXP<sup>®</sup> with Shear Jaw

Genesis LXP with Shear Jaw with open jaws facing left.
Summary

LXP® with Shear Jaw

  • Patented bolt-on piercing tip is replaced in minutes without grinding or welding
  • Patented pivot geometry creates peak power for piercing and cutting
  • Four-way indexable guide blades, razor blade and primary blades provide four useable cutting edges
  • Proprietary regeneration valve improves cycle time by up to 33%
  • Jaw change-outs in 15 minutes with coupler style connection system

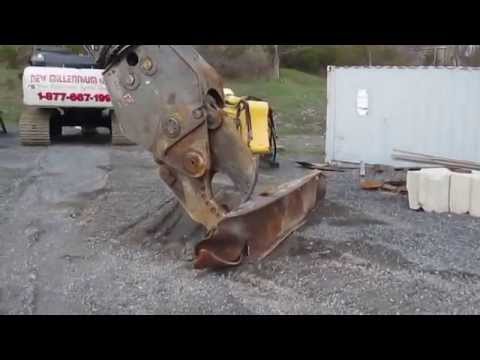

Watch the cutting and piercing power of the Genesis LXP with Shear Jaw.
Watch the cutting and piercing power of the Genesis LXP with Shear Jaw.
  • Specifications
  • Description
  • Literature
  • Manuals
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** (ft. ins.)Min. Excavator Weight Boom Mount (lbs.)Min. Excavator Weight Stick Mount (lbs.)
LXP 200 Shear5,37017198' 0"20,00045,000
LXP 200 CC5,65038288' 0"20,00045,000
LXP 200 CP5,67029248' 0"20,00045,000
LXP 300 Shear7,60022248' 6"45,00070,000
LXP 300 CC7,56043308' 6"45,00070,000
LXP 300 CP7,27035268' 6"45,00070,000
LXP 400 Shear11,06524279' 6"60,000100,000
LXP 400 CC11,1454733.59' 6"60,000100,000
LXP 400 CP11,25538309' 6"60,000100,000
LXP 500 Shear12,90527289' 11"70,000120,000
LXP 500 CC12,7155134.59' 11"70,000120,000
LXP 500 CP12,20543319' 11"70,000120,000
LXP 800 Shear17,500403511' 8"90,000150,000
LXP 800 CC17,600715011' 8"90,000150,000
LXP 800 CP17,720613911' 8"90,000150,000

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
Genesis Logix Processors are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

A demolition shear and demolition pulverizer, such as the LXP® with Shear Jaw by Genesis Attachments, is designed for general and bridge demolition, and structural steel, rebar, wire, aluminum and copper processing.



In addition to being a demolition shear, the Genesis Logix Processor features concrete cracker and demolition pulverizer jaws, providing powerful multiprocessor capabilities.


Each jaw set's integrated, patented pivot group is configured to deliver the perfect power curve for its primary application. This provides maximum power at the piercing point when shearing, concentrated force at the cracker tips and peak power when the jaws are fully open for concrete crushing. And with proven Genesis bolt-on wear parts, shear piercing tips, cracker teeth and pulverizer teeth beds are replaced in minutes, reducing maintenance downtime.


For additional product, application or service information, call us at 1-888-SHEAR-IT.
